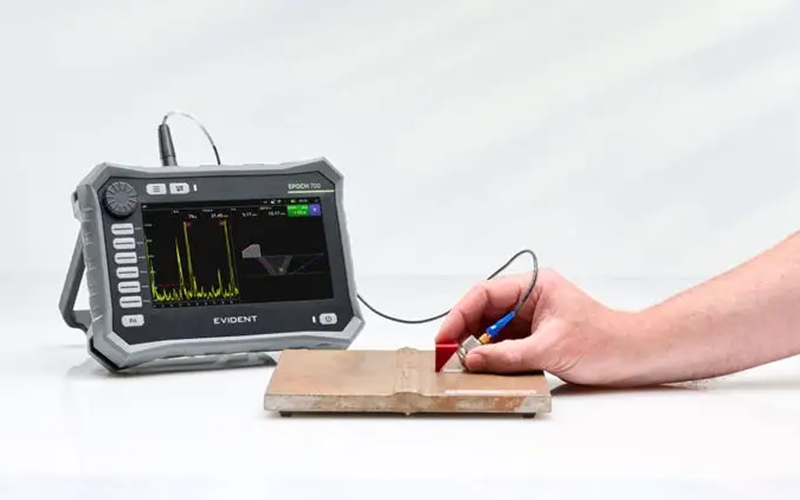

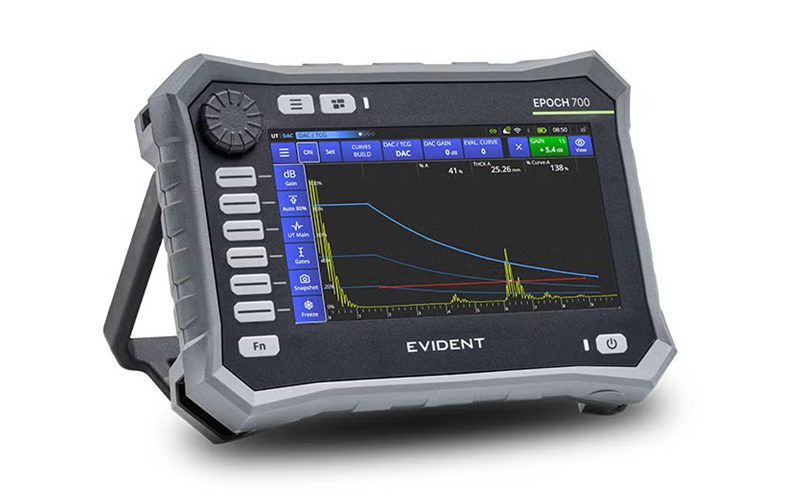

EPOCH 700 | Ultrasonic Flaw Detector

The EPOCH™ 700 conventional ultrasonic flaw detector enhances every signal, brings more confidence to every inspection, and seamlessly connects every result. Today’s only ultrasonic flaw detector that combines a modern touchscreen with a dedicated adjustment knob and direct-access function buttons, the EPOCH 700 is a new benchmark in conventional UT, engineered for field realities, built with tools that deliver provable results, and designed to put inspection data to work long after the scan is complete.

Applications NDT - Inspection, Ultrasonic Flaw Detectors

Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water

It combines the flexibility of a touchscreen, adjustment knob, and direct-access button interface designed for real-world work.
Advanced 24-bit A-scan digitization enables high-resolution signal acquisition, with amplitude measurements up to 800% full-screen height and reliable defect sizing, even at high gain settings.
Provides precise control over the energy and frequency characteristics of the transmitted sound pulse, with pulser voltage settings that support the full range of conventional UT applications.
More than 20 fully digital filter sets help optimize performance across a wide range of applications, from low-frequency inspection of cast iron and austenitic stainless steel to high-frequency inspection of aerospace components.
Supports DAC/TCG with ASME, JIS, CNDAC, and custom curve configurations; DGS/AVG for echo-height-based flaw sizing; and AWS D1.1/D1.5 for applications requiring dynamic reflector indication ratings.
