Scanmaskin 28 & 32 Worldseries Move Edition

Scanmaskin
Scanmaskin 28 & 32 Worldseries Move Edition
Scanmaskin 28 & 32 Worldseries Move Edition
Scanmaskin 28 & 32 Worldseries Move Edition
Scanmaskin 28 & 32 Worldseries Move Edition
Scanmaskin 28 & 32 Worldseries Move Edition
Scanmaskin 28 & 32 Worldseries Move Edition

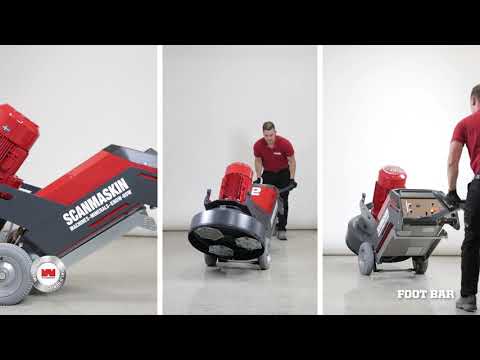

Scanmaskin MOVE/EDITION is our most ergonomic floor grinder, designed by you for you. This is a further development of our World Series Line which features a robust cast planetary with unmatched durability. The simplistic design allows for easy and quick repairs on common service items, allowing you to get moving faster than ever.  The MOVE/EDITION features a new handle with two adjustment points and 360 degrees of rotation on the hand grip. This also enables a good hip support along with high and low positions to accommodate any operator. The new MOVE/EDITION motor weighs less without compromising performance. We’ve been able to reduce its weight by 50 lbs while offering the same power as before. The detachable new front wheel also reduces weight when removed and gives an improved ground clearance and makes it easier to move. We have updated the wheels to ergo solid wheels with larger diameter which provide up to 40% less resistance when moving the machine.

Learn More »

Applications Surface Preparation
Industries Civil Infrastructure, Commercial Services

Grinding disc speed: 200-825 rpm

Grinding disc: 3 X 280 mm / 3 X 11”

Grinding width: 725 mm/28″

785 mm/ 32”

Weight: 550 / 570 kg

1 212 / 1 256 lbs

Grinding pressure: 365 kg / 804 lbs

Water tank: 20 l / 5,3 US gal

Other: CE marking
