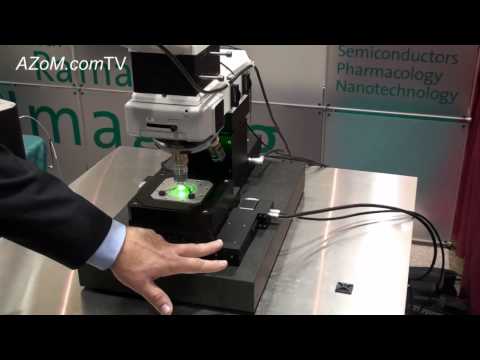

The confocal Raman imaging system alpha300 R offers the unique ability to acquire chemical information non-destructively with a resolution to the optical diffraction limit (~ 200 nm). This allows you to observe and analyze the distribution of different phases within a sample in ambient conditions without specialized sample preparation. Because of the confocal setup, it is possible to collect information from the sample surface and look deep inside transparent samples and even obtain 3D information.

In addition to the imaging capabilities, the system can also collect Raman spectra at selected sample areas and along arbitrary lines or to acquire time series.

The alpha300 R is a confocal Raman microscopy system available in several configurations with different features to fulfill a wide variety of customer requirements.

Whether you want to perform micro-Raman mapping or high-end 3D Raman imaging, as a Raman newcomer or an experienced user, in a scientific setting or an industrial laboratory, WITec offers the perfect Raman imaging solution for you.

Learn More »

Applications Confocal Raman Microscope
Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water
  • Imaging results may include information on the distribution of chemical compounds, amorphous/crystallinity-analysis, and material stress characterization.
  • Spatial resolution down to 200 nm
  • 3D chemical imaging due to confocal setup
  • Nondestructive
  • Minimal, if any, sample preparation
  • Applications: Life Science, Geoscience, Polymer Science, Carbon Materials, Forensics.
