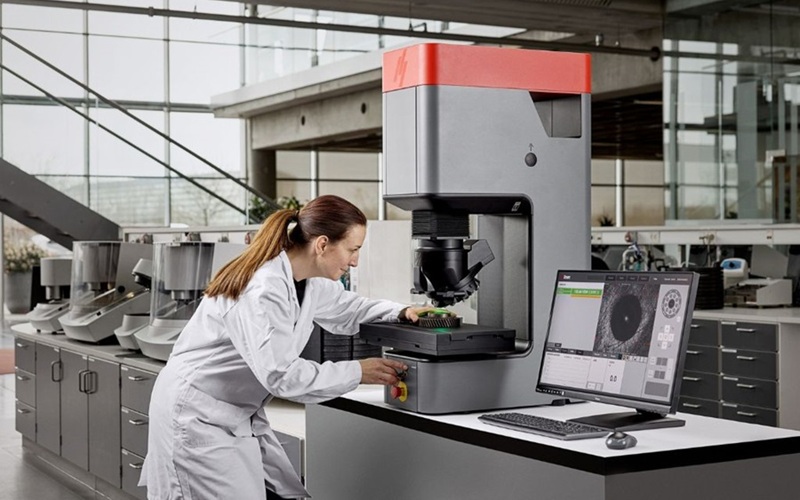

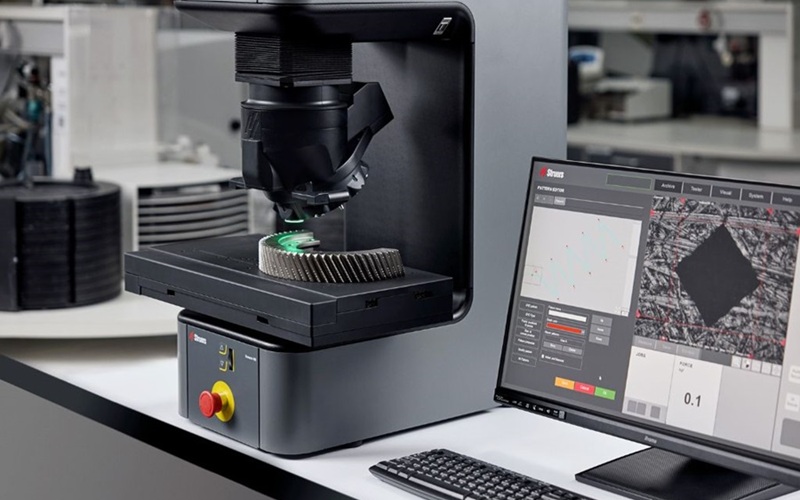

The DuraVersa-100 is an automated Universal hardness tester, supporting all common hardness scales like Rockwell, Vickers, Knoop, and Brinell. Offered in three versions, starting from loads as low as 200gf and extending up to 250 kg, 750kg, or even 3000kg, with the option for expansion to include low forces down to 10gf for all 3 versions. Each version features the distinctive 9-position turret, providing flexibility to equip indenters and objectives according to specific application requirements.


Applications Hardness Testing, Materialographic Preparation and Inspection
Industries Aerospace, Commercial Services, Defence & Security, Education & Research, Manufacturing, Oil & Gas
  • Methods: Vickers, Knoop, Brinell and Rockwell hardness testing
  • Load ranges: 200 gf - 250kgf, 200 gf - 750 kgf, 200 gf - 3000 kgf

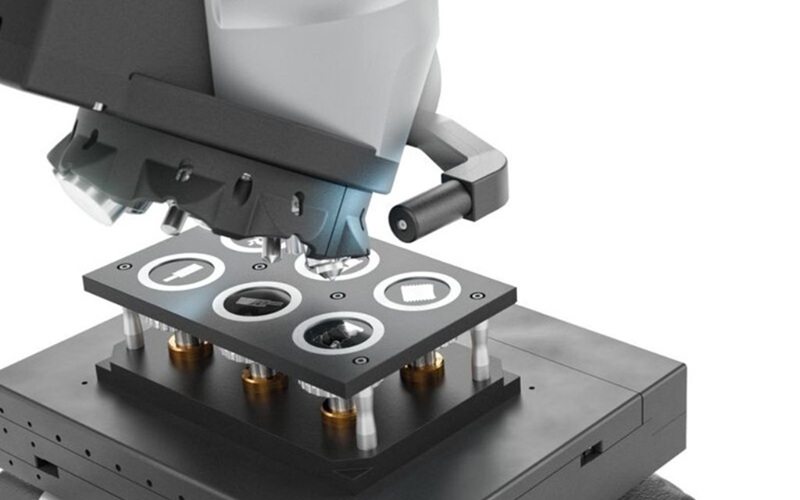

  • Automatic eight-position turret + combined touch probe & laser pointer
  • Motorized test head
  • Motorized XY-stage (selectable option)
  • Anti-collision system
  • Overview camera
  • Embedded PC, operated by mouse or touchscreen (external PC optional)
  • Other features include mapping, edge detection, welding measurement, fracture measurement, and Jominy testing.
