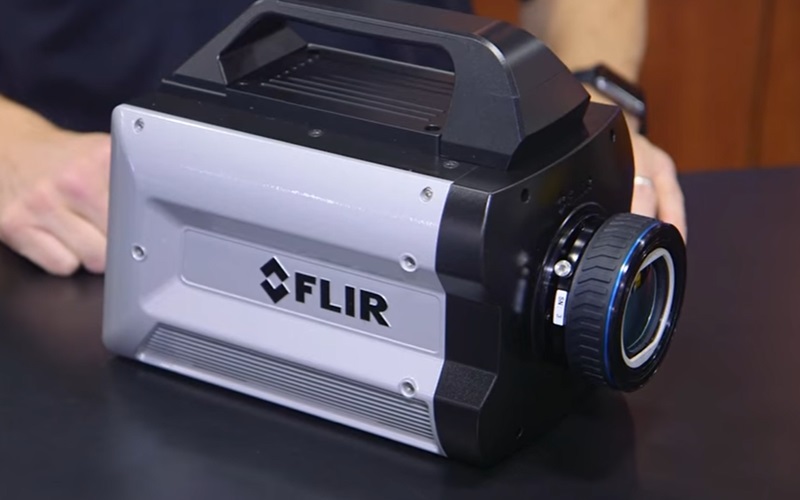

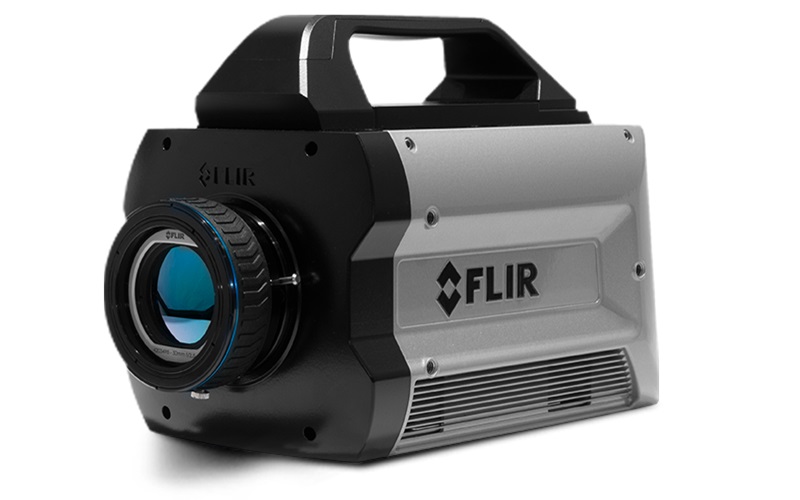

MWIR High Speed MWIR InSb Camera X6800sc

The FLIR X6800sc is a fast, highly sensitive MWIR camera designed for scientists, researchers, and engineers. With advanced triggering and on-camera RAM/SSD recording, this camera offers the functionality to stop motion on high- speed events both in the lab and at the test range. The X6800sc has a cooled FLIR indium antimonide (InSb) detector and captures a full 640 x 512 images at 520 frames per second or up to 23,077 Hz with windowing.

Learn More »


Applications Thermal Imaging Camera
Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water
  • Accuracy - ≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical)
  • Detector Type - FLIR indium antimonide (InSb)
  • Dynamic Range - 14-bit
  • Integration Time - 270 ns to ~full frame
  • NETD - <20 mK (typical)
  • Resolution 640 × 512
  • Size [L x W x H ] w/o Lens - 249 × 157 × 147 mm (9.8 × 6.2 × 5.8 in)
  • Standard Temperature Range - from -20°C to 300°C (-4°F to 572°F)
  • Optional Temperature Range [with band matched optics] - 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3).
MWIR High Speed MWIR InSb Camera X6800sc
Product Brochures

  1. x6800_MWIR_datasheet.pdf
