PROVEN INDUSTRY-LEADING DRONE LiDAR SURVEY EQUIPMENT AND SOFTWARE.

mdLiDAR1000HR: HR means high-resolution point clouds and increased coverage is made easier and more accessible than ever. This is the UAV, hardware, software, workflow, training, and support that surveying professionals need- now with convenient mdaaS plans!

Who Should Consider This System:

Professionals responsible for geospatial data collection should consider mdLiDAR1000HR to support the following tasks.

  • Digital Twin Creation and Maintenance
  • Corridor mapping
  • Mining (volume calculation)
  • Construction site monitoring
  • Environmental changes (time series)
  • Forestry
  • Contour mapping
  • Planning, Leveling, Excavation
  • Archaeology and cultural heritage
  • Highway construction
  • Precision Agriculture

LiDAR + mdaaS + EASY TO USE mdInfinity SOFTWARE = EXTREME GEOSPATIAL PRODUCTIVITY, NOW IN HIGH RESOLUTION

Microdrones has developed an end-to-end LiDAR solution combining a drone, a LiDAR payload, a fully integrated LiDAR processing and photogrammetry software workflow, and world class support to consistently provide quality deliverables.

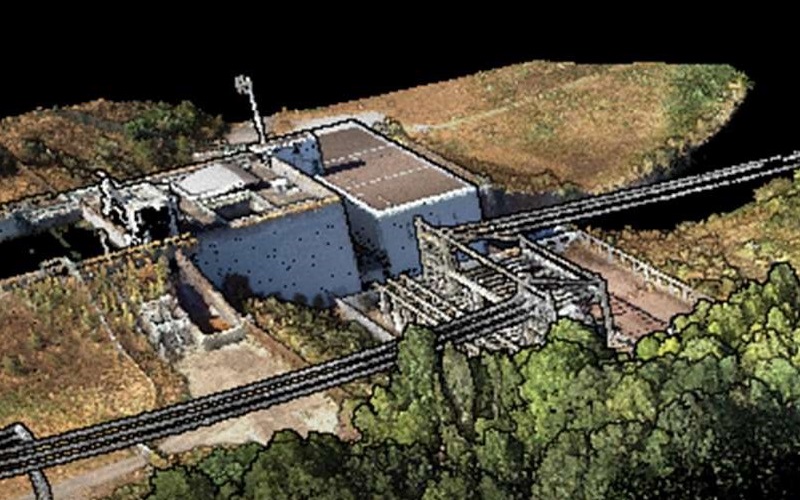

mdLiDAR1000HR is a fully integrated system for producing 3D point clouds optimized for land surveying, construction, oil & gas and mining applications.

mdLidar1000HR with a 90 degree field of view for both scanned points and imagery, repeatedly provides a precision of 1.6 cm (.052 ft) at 1-σ when flown at 40 m (130 ft) at a speed of 8 m/s (18 mph).

Improved image acquisition precisely configured to match 90 degree laser scanner field of view enables compatibility with streamlined point cloud colorization and FORMap data processing modules within the mdInfinity platform.

Each LiDAR channel of the mdLiDAR1000HR was boresight calibrated to improve the data consistency, therefore providing a reduced Standard Measurement Uncertainty.


EASY END-TO-END WORKFLOW:

Plan

Simple mission planning using mdCockpit

User selects flying height, drone speed and LiDAR strip overlap


Fly

Fully automated mission execution, realtime monitoring, and flight control using mdCockpit


Process

Thorough georeferencing data processing using the Applanix APX-15 UAV DG and mdInfinity Software

Automated final point cloud processing using mdInfinity processing software

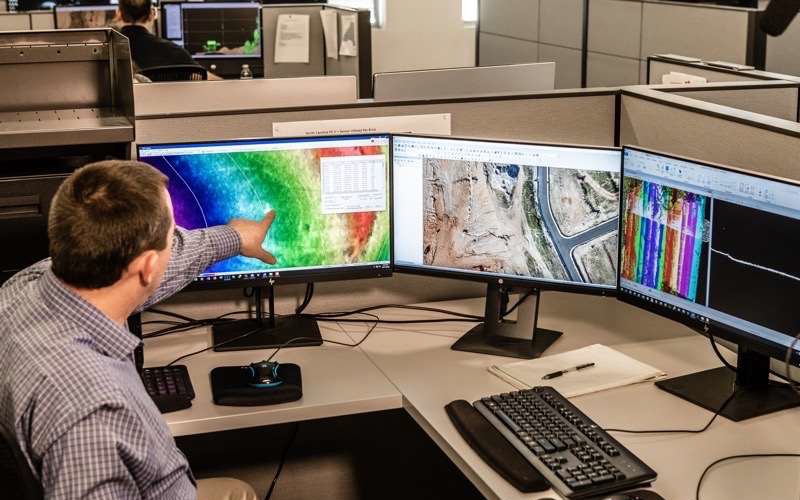

Visualize

Final point cloud in standard ASPRS LAS format, View your deliverable in mdInfinity software, or export to use within any GIS or CAD software environment that you currently use.


5 REASONS WHY PROFESSIONALS ARE MAKING THE mdLiDAR1000HR PART OF THEIR GEOMATICS WORKFLOW:

DRONES CAN LEAD TO BETTER WORKER SAFETY

Easily tackle projects in areas that are difficult, dirty or dangerous to access – such as challenging terrain, crumbling structures, high elevations, and areas impacted by natural disasters.

SAVE TIME, MONEY AND HASSLE BY DEPLOYING A DRONE

Collecting data previously required extensive groundwork or very expensive manned aircraft. Using a drone allows quick and affordable data collection; that’s one of the most important benefits for geospatial professionals.

INTEGRATED DRONES = INTERRUPTION-FREE DATA COLLECTION

Survey live construction or mining sites without interrupting people, plans or machinery. You’ll no longer have to stop work and equipment to collect the data you need, making you more valuable to your customers.

TECHNOLOGY THOUGHT LEADERSHIP AND PRACTICAL FIELD LEADERSHIP

Customers are curious about UAV surveying technology – so providing it demonstrates that a business is an industry leader at the helm. Faster, more efficient data collection differentiates you from competitors and positions you as a subject matter expert in an emerging technology.

MICRODRONES OFFERS UNMATCHED TRAINING, EDUCATION AND SUPPORT

Our professional UAV pilots offer complete onsite Microdrones UAV training to both dealers and end-user customers to ensure they are fully capable of deploying their drone packages in the field, ready to achieve immediate results.

Learn More »

Applications LIDAR Survey
Industries Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Mining, Oil & Gas, Utilities - Electricity and Water

Platform

  • md4-1000

Payload

  • LiDAR Sensor: Velodyne PUCK VLP-16
  • Camera Sensor: SONY IMX264
  • Georeferencing: APX-15 UAV

Software

  • mdCockpit
  • mdInfinity

Takeoff Weight (TOW):

  • 6500g

System Operation Temperature:

  • -10 °C to 50 °C
  • 14 °F to 122 °F

System Accuracy

  • LiDAR Pointcloud
  • 4 cm RMSE

Photogrammetry:

  • Horizontal: 1 – 2 pixels
  • Vertical: 3 – 4 pixels

mdLIDAR1000 HR
