Pendulum Impact Test System MPX Series

Pendulum Impact Test System MPX Series
MPX Pendulum Impact Tester
MPX Pendulum Impact Tester
MPX Pendulum Impact Tester
MPX Pendulum Impact Tester

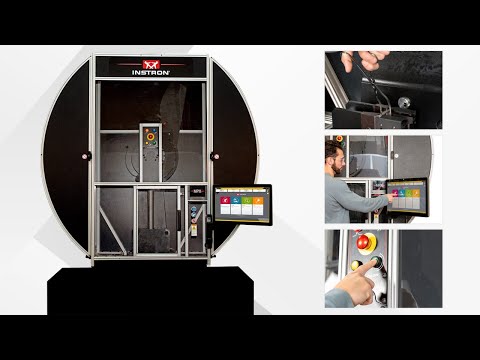

The Instron MPX motorized pendulum impact test system with the new Bluehill Impact software is the preferred system for metals impact testing to Charpy and Izod standards. Available in capacities ranging from 300 to 900 Joules, the MPX is efficient and easy to operate, making it suitable for high-volume testing. The testing space is fully enclosed and uses an integrated guard and safety control system that meets the stringent requirements for the European CE mark and ISO 13849 - offering exceptional protection for your operators.

Learn More ยป

Applications Impact Testing Systems
Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water
  • Standard capacities include 300, 450, 600, 750, and 900 Joules
  • Automatic test start at door closure for efficient testing and adherence to standards for non-ambient specimen testing
  • Optional interchangeable hammer weights conveniently adjust the system capacity without removal of the hammer shaft
  • Motorized hammer lift and automatic return to start test position for increased productivity and operator safety
  • Hammer brake, clutch, and latch mechanisms respond quickly for faster operation

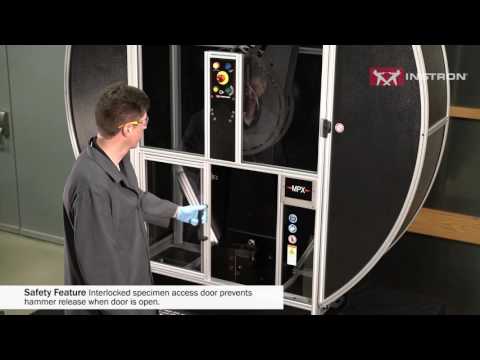

  • Safety enclosure with interlocks protects the operator by preventing the hammer from releasing when doors are open
  • Adjustable latch height adds configurability for testing at lower energies and velocities
  • Standard base design meets ASTM and ISO recommendations
  • Charpy anvil inserts and striker are selectable to meet a range of international test standards
  • The MPX is designed to meet the following standards: ASTM E23, ISO 148, EN 10045, GOST 9454, AS 1544, JIS Z 2242, JIS B 7722
