Torsion Testing Machines MT Series

The MT Series torsion testing systems are available in six standard models with force capacities ranging up to 5,650 N-m (50,000 lbf-in) and are used for torsion testing and component in-service simulation. The compact design requires minimal lab space and offers superior frame stiffness and alignment. Packaged with Instron high-performance control electronics, the MT Series provides highly accurate test data and control for testing wire, fasteners, metal components, switches, and springs used in the biomedical, automotive, aerospace, and construction industries.

Learn More »

Applications Torsion Testers

Industries Aerospace, Civil Infrastructure, Commercial Services, Defence & Security, Education & Research, Manufacturing, Mining, Oil & Gas, Power Generation, Utilities - Electricity and Water

Dual linear slide design offers high-torsional stiffness and low-axial friction
Adjustable crosshead locking system allows crosshead to be free-floating or fixed
Torque cells available from 0.225 - 5,650 Nm (2 - 50,000 lbf-in) provide superior accuracy and zeroing capability
Comprehensive torsion testing software provides graphical data plots and performs a wide range of calculations on torque and angle data
Productivity panel with multiple function keys and displays allows the operator to perform common testing functions and view key test information without returning to the computer
Torque cell protection device prevents damage to low-capacity torque cells during test setup

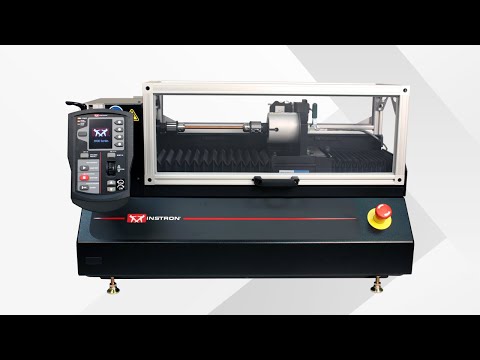

MT1 and MT2: Interlocked enclosure protects the operator from the rotating drive by preventing testing when the guard is open
MT5, MT10, MT20, and MT50: Interlocked chuck guard protects the operator from the rotating drive during operation
Optional preload assembly provides constant axial force in compression or tension
