Magna Mike® 8600 Thickness Gauge

Magna Mike® 8600 Thickness Gauge
Magna Mike® 8600 Thickness Gauge
Magna Mike® 8600 Thickness Gauge
Magna Mike® 8600 Thickness Gauge
Magna Mike® 8600 Thickness Gauge

The Magna Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. The operation of the Magna Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe's Hall Effect sensor measures the distance between the probe tip and the target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.

Learn More »

Applications Hall Effect Thickness Gauge
Industries Aerospace, Commercial Services, Defence & Security, Manufacturing, Oil & Gas
  • New durable probe designs - Straight, Right Angle, and Low-profile Articulating

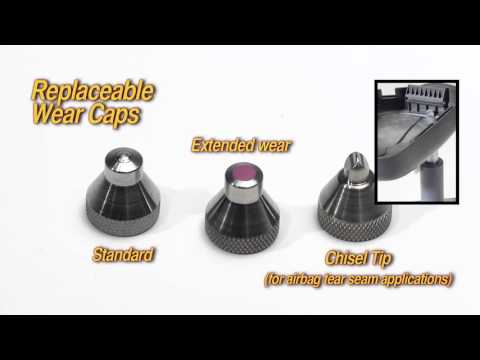

  • Replaceable Wear Caps - Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
  • Expanded target selection: 3/16 and 1/4 in. magnetic target balls; 0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
  • Expanded thickness range up to 25.4 mm (1.00 in.)
  • Larger Color VGA display
  • RS-232, USB, and VGA outputs
  • Fast Measurement update rate 60 Hz
  • Expanded alphanumeric data logger.
Magna Mike® 8600 Thickness Gauge
